Self-Inflating Sealing Bag
MaxBag is designed to create a seal between the underground cable conduit and the cable(s) for telecommunications or other uses. It's fast and easy to install. MaxBag configurations support 52mm to 125mm conduit applications.
Features
MaxBag is activated manually with no tooling requirement. Inflation is achieved via a pull cord mechanism activating an internal gas capsule as opposed to using external compressed air. This provides the following advantages:
- Consistent inflation
- No tools required
- No maintenance required for inflation tools and accessories
- Fast, flexible and easy to install, reducing installation time
- It is possible to install and seal even with water in the interior of the conduit
- Easy to remove
- Adaptable to any cable diameter (within nominal min. and max. cable OD)
- The life cycle of the product is a minimum of 20 years
Applications
MaxBag is designed to create a barrier against the infiltration of silt, dirt/mud, debris and rodents into or out of buried conduit while also facilitating cable organization. MaxBag internal pressure is near 43.5psi.
| PART NUMBER |
OUTER DUCT NOMINAL DIAMETER (APPROX.) |
CABLE MAX DIAMETER (APPROX.) |
CABLE MIN DIAMETER (APPROX.) |
| MXCB2 |
63 mm (2.48 in) |
45 mm (1.77 in) |
7 mm (0.27 in) |
| MXCB3 |
90 mm (3.54 in) |
60 mm (2.36 in) |
10 mm (0.39 in) |
| MXCB4 |
110 mm (4.33 in) |
80 mm (3.14 in) |
12 mm (0.47 in) |
Tests
| NAME |
METHOD |
| Sealing |
Immersion in water for 48 hours with a pressure of 50kPa (7.252psi) |
| Thermal Cycle |
20 cycles of 12 hours oscillating between 15° and 50° C (59° to 122° F) |
| Vibration |
10 day cycle with 10Hz vibration in the test cable |
| Chemical |
Acid, hydroxide, sulfide, chloride and petrol by product resistance |
| Working Temp |
-50° to 70° C (-58° to 158° F) |

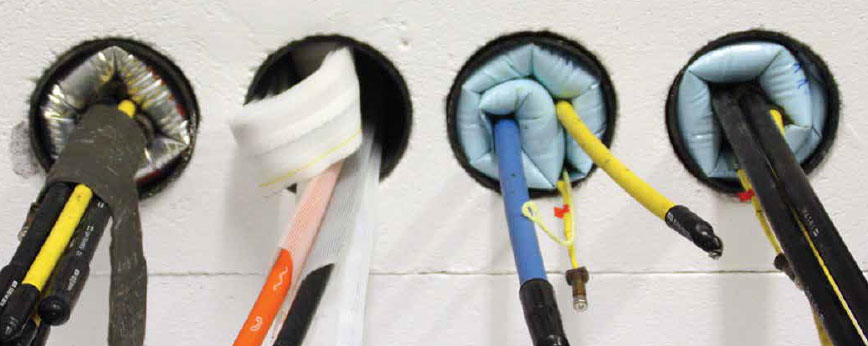

Reusable Termination Bags
MaxCell® conforms to the shape of cables placed within and greatly reduces the wasted space associated with rigid innerduct. When you use MaxCell with a reusable termination bag, you’ll save time and money every time you deploy cable.
Reusable termination bags can provide an airtight seal in innerduct diameters ranging from 2 inches to 5 inches. The patented inflatable ADE/V sealing elements are made of a laminated foil developed for aircraft application. The sealing element is placed in the duct around cables and inflated to the required air pressure via a durable metal tire valve, completely sealing the innerduct. The sealing element may be easily removed by releasing the air pressure, again via the tire valve. This allows incremental cable deployments and reduces your total installation cost.
- Extremely low leakage rate of 2.7 mbarl/year
- Service life of 20 years against gas diffusion
- Up to 5 meter water column (7 psi)
- Chemicals from pH2 to pH12
| PART NUMBER |
DESCRIPTION |
INNERDUCT DIAMETER (MM) |
DUCT SEALING RANGE OCCUPANCY OPTIMAL DIAMETER (MM) |
DUCT SEALING RANGE OCCUPANCY MINIMAL DIAMETER (MM) |
| MXCRTBVL50 |
Sealing element for temperature range -15°C to +30°C Duct 0 ~ 52mm |
52 |
33.02 |
0 |
| MXCRTBVL80 |
Sealing element for temperature range -15°C to +30°C Duct 0 ~ 75mm |
75 |
55.88 |
0 |
| MXCRTBVL100 |
Sealing element for temperature range -15°C to +30°C Duct 0 ~ 100mm |
100 |
73.66 |
0 |
| MXCRTBVL125 |
Sealing element for temperature range -15°C to +30°C Duct 0 ~ 125mm |
125 |
88.9 |
17.78 |
DOWNLOAD REUSABLE TERMINATION BAGS SPEC SHEET
